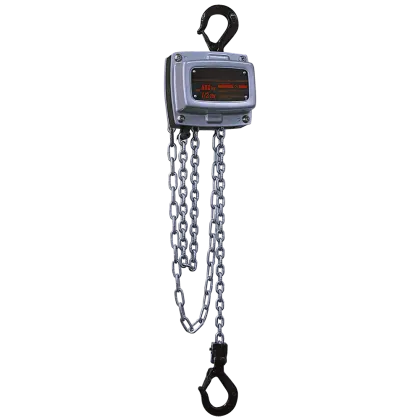

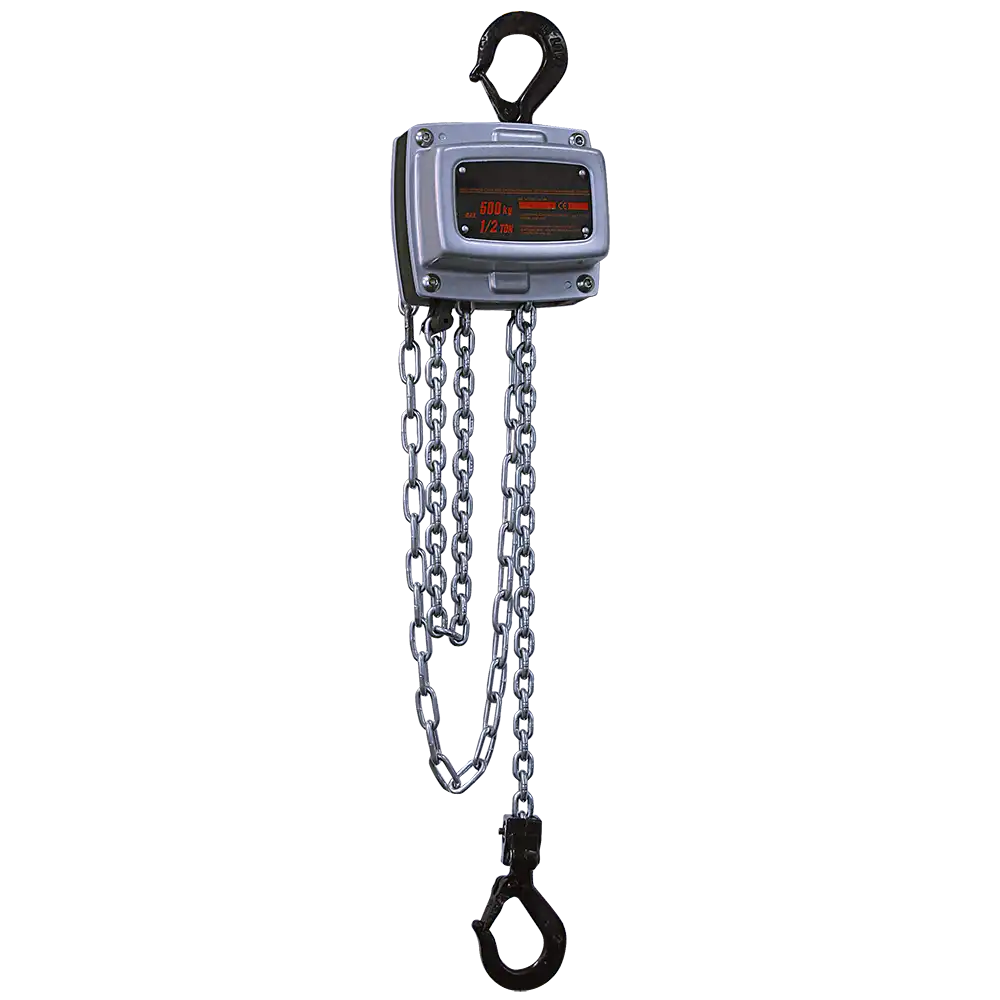

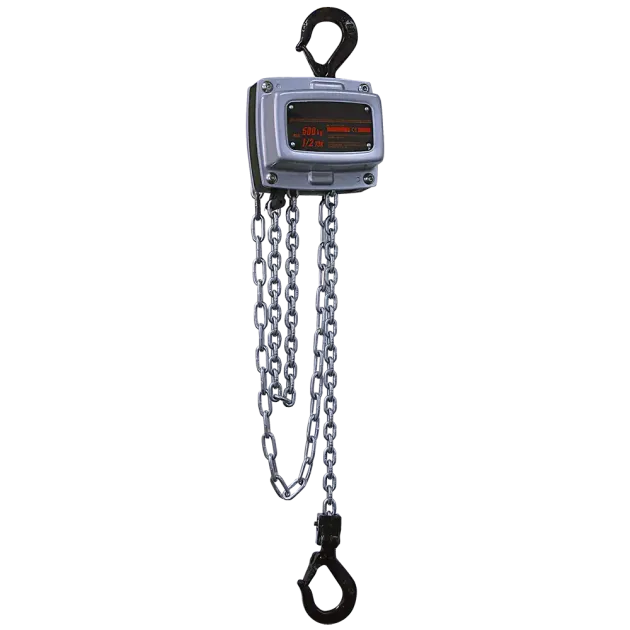

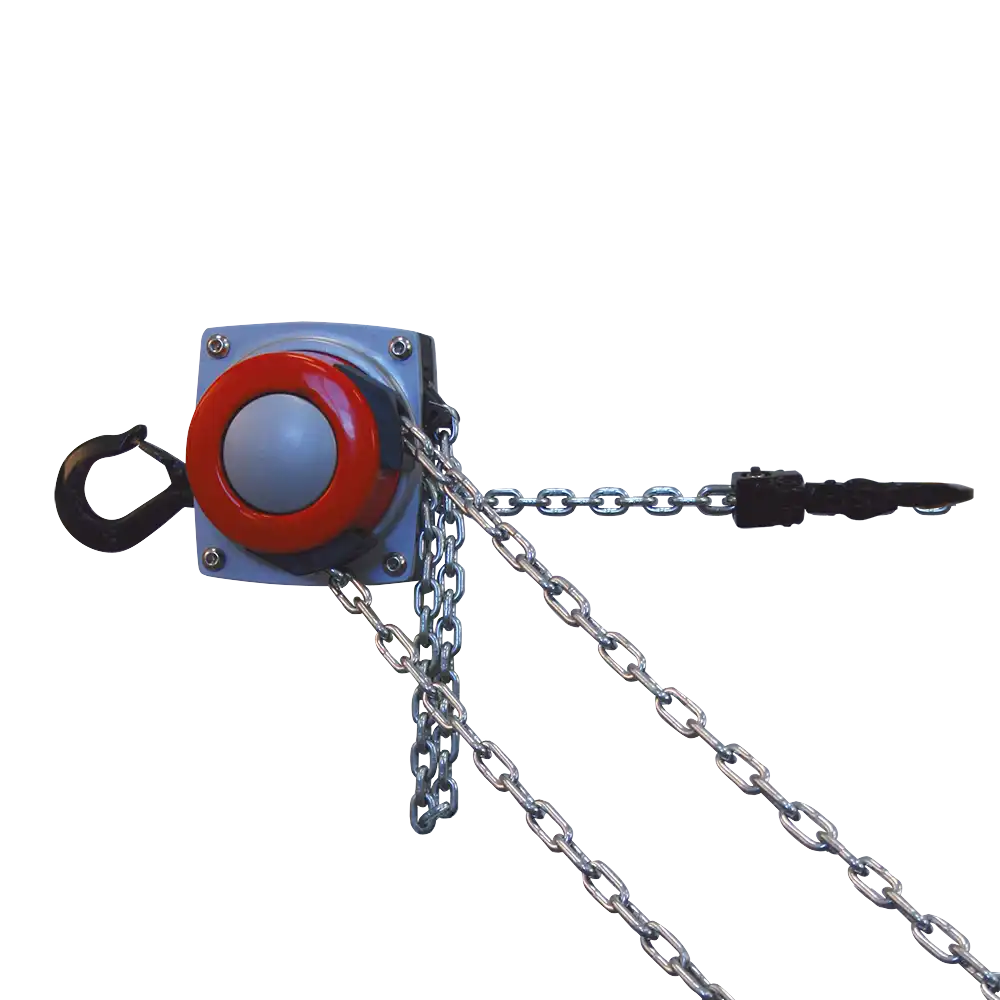

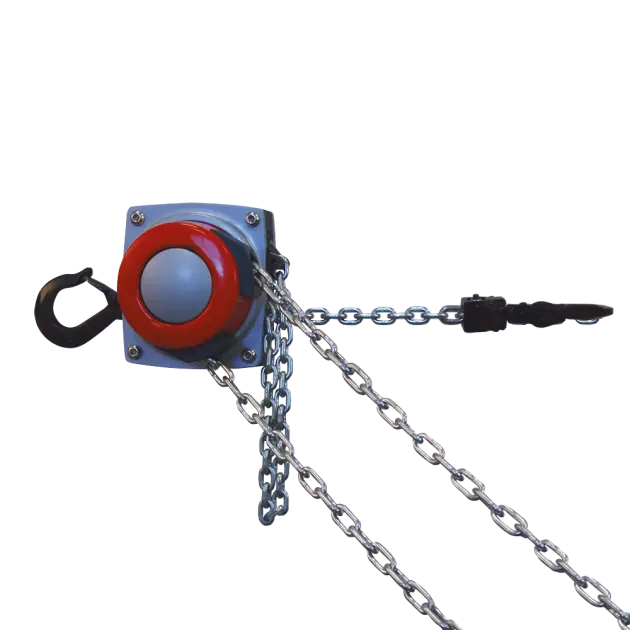

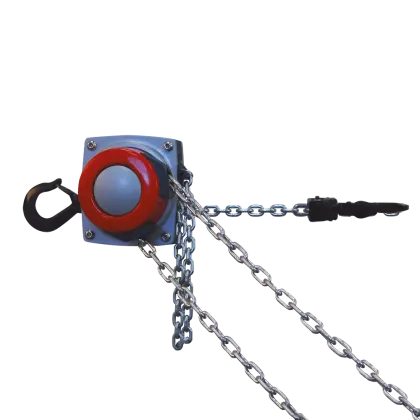

Handkettenzug Typ HZD
- Tragfähigkeit 500 - 20000 kg
- robustes, geschlossenes Stahlgehäuse
- geräusch- und verschleißarm
- vergütetes Lastkettenrad
- drehbarer Oberhaken
- drehbarer Lasthaken
- verzinkte Lastkette
- horizontaler Einsatz
- Überkopfbetrieb
- kleine Bauhöhe
Leistungsdaten:
Artikel | Tragfähigkeit kg | Kettenstränge | kleinste Bauhöhe mm | Hubkraft* kg | Handkettenabwicklung** m | Gewicht*** kg |
HZDB00503 | 500 | 1 | 300 | 21 | 30 | 9 |
HZDB00506 | 500 | 1 | 300 | 21 | 30 | 9 |
HZDC00510 | 500 | 1 | 300 | 21 | 30 | 9 |
HZDB01003 | 1000 | 1 | 335 | 30 | 49 | 13 |
HZDB01006 | 1000 | 1 | 335 | 30 | 49 | 13 |
HZDC01010 | 1000 | 1 | 335 | 30 | 49 | 13 |
HZDB02003 | 2000 | 1 | 395 | 32 | 71 | 20 |
HZDB02006 | 2000 | 1 | 395 | 32 | 71 | 20 |
HZDC02010 | 2000 | 1 | 395 | 32 | 71 | 20 |
HZDB03003 | 3000 | 1 | 520 | 38 | 87 | 29 |
HZDB03006 | 3000 | 1 | 520 | 38 | 87 | 29 |
HZDC03010 | 3000 | 1 | 520 | 38 | 87 | 29 |
HZDB05003 | 5000 | 2 | 654 | 34 | 174 | 38 |
HZDB05006 | 5000 | 2 | 654 | 34 | 174 | 38 |
HZDC05010 | 5000 | 2 | 654 | 34 | 174 | 38 |
HZDB10003 | 10000 | 3 | 825 | 44 | 261 | 71 |
HZDB10006 | 10000 | 3 | 825 | 44 | 261 | 71 |
HZDC10010 | 10000 | 3 | 825 | 44 | 261 | 71 |
HZDB20003 | 20000 | 6 | 1010 | 2 x 44 | 522 | 196 |
HZDB20006 | 20000 | 6 | 1010 | 2 x 44 | 522 | 196 |
HZDC20010 | 20000 | 6 | 1010 | 2 x 44 | 522 | 196 |
* bei Nennlast
** pro Meter Lastkettenhub
*** bei Hub 3 m

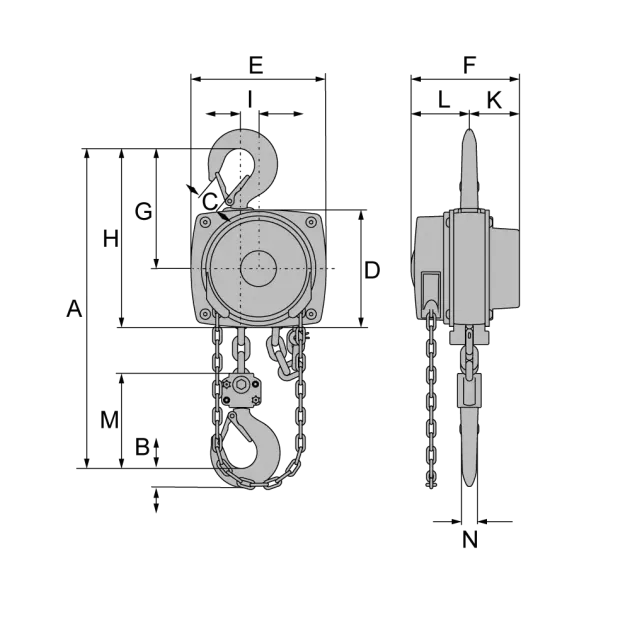

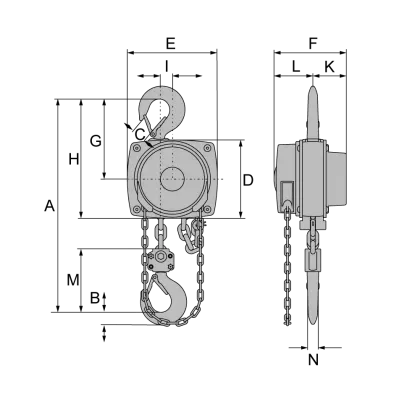

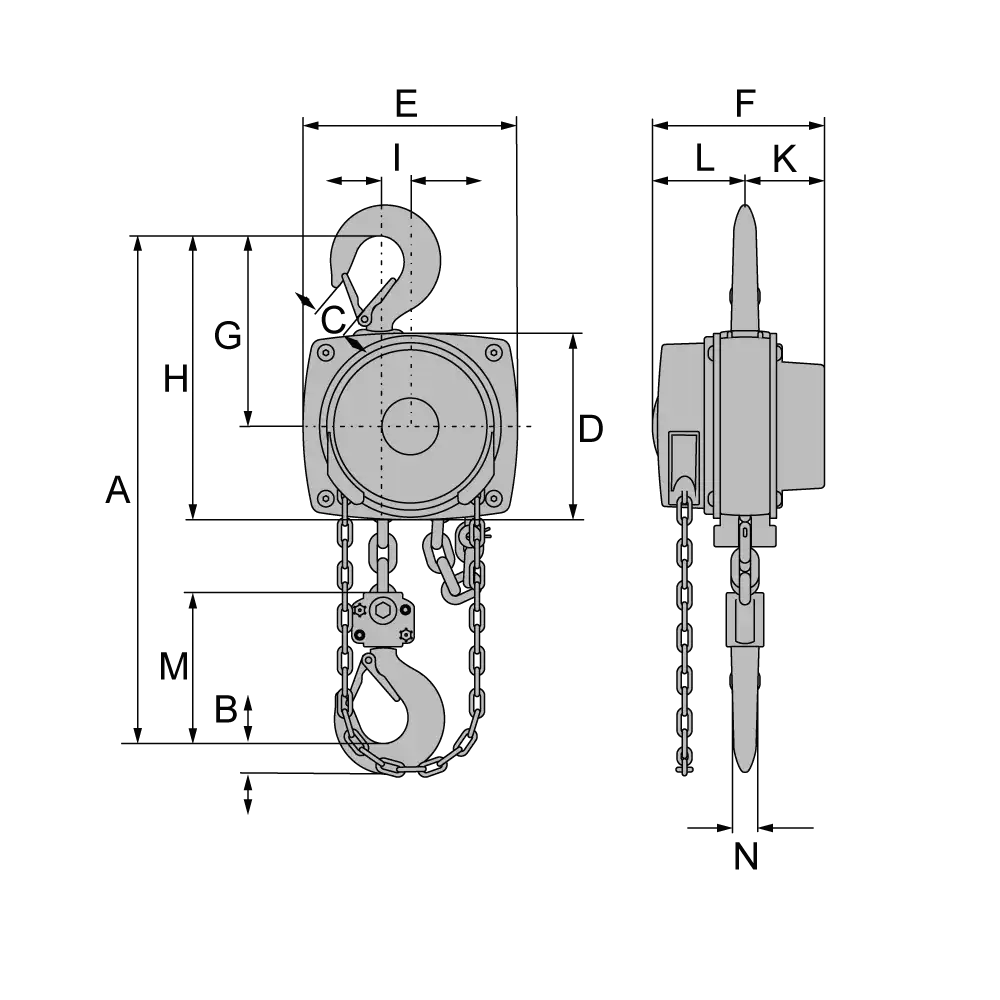

Abmessungen [mm]:
Artikel | A min | B | C | D | E | F | G | H | I | K | L | M | N |
HZDB00503 | 300 | 17 | 24 | 133 | 148 | 139 | 139 | 206 | 24 | 61 | 79 | 110 | 14 |
HZDB00506 | 300 | 17 | 24 | 133 | 148 | 139 | 139 | 206 | 24 | 61 | 79 | 110 | 14 |
HZDC00510 | 300 | 17 | 24 | 133 | 148 | 139 | 139 | 206 | 24 | 61 | 79 | 110 | 14 |
HZDB01003 | 335 | 22 | 29 | 156 | 175 | 157 | 164 | 242 | 24 | 70 | 87 | 125 | 19 |
HZDB01006 | 335 | 22 | 29 | 156 | 175 | 157 | 164 | 242 | 24 | 70 | 87 | 125 | 19 |
HZDC01010 | 335 | 22 | 29 | 156 | 175 | 157 | 164 | 242 | 24 | 70 | 87 | 125 | 19 |
HZDB02003 | 395 | 30 | 35 | 182 | 203 | 183 | 192 | 283 | 31 | 83 | 100 | 156 | 22 |
HZDB02006 | 395 | 30 | 35 | 182 | 203 | 183 | 192 | 283 | 31 | 83 | 100 | 156 | 22 |
HZDC02010 | 395 | 30 | 35 | 182 | 203 | 183 | 192 | 283 | 31 | 83 | 100 | 156 | 22 |
HZDB03003 | 520 | 38 | 40 | 220 | 250 | 204 | 225 | 335 | 34 | 95 | 109 | 178 | 30 |
HZDB03006 | 520 | 38 | 40 | 220 | 250 | 204 | 225 | 335 | 34 | 95 | 109 | 178 | 30 |
HZDC03010 | 520 | 38 | 40 | 220 | 250 | 204 | 225 | 335 | 34 | 95 | 109 | 178 | 30 |
HZDB05003 | 654 | 45 | 47 | 220 | 250 | 204 | 242 | 352 | 21 | 95 | 109 | 285 | 37 |
HZDB05006 | 654 | 45 | 47 | 220 | 250 | 204 | 242 | 352 | 21 | 95 | 109 | 285 | 37 |
HZDC05010 | 654 | 45 | 47 | 220 | 250 | 204 | 242 | 352 | 21 | 95 | 109 | 285 | 37 |
HZDB10003 | 825 | 68 | 68 | 220 | 383 | 204 | 326 | 436 | 136 | 95 | 109 | 401 | 50 |
HZDB10006 | 825 | 68 | 68 | 220 | 383 | 204 | 326 | 436 | 136 | 95 | 109 | 401 | 50 |
HZDC10010 | 825 | 68 | 68 | 220 | 383 | 204 | 326 | 436 | 136 | 95 | 109 | 401 | 50 |
HZDB20003 | 1010 | 85 | 64 | 303 | 555 | 250 | 391 | 501 | -- | 396 | 125 | 471 | 56 |
HZDB20006 | 1010 | 85 | 64 | 303 | 555 | 250 | 391 | 501 | -- | 396 | 125 | 471 | 56 |
HZDC20010 | 1010 | 85 | 64 | 303 | 555 | 250 | 391 | 501 | -- | 396 | 125 | 471 | 56 |
