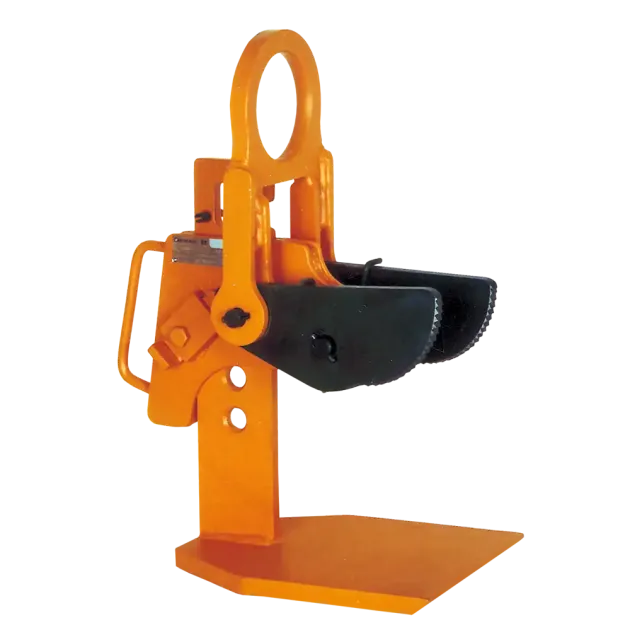

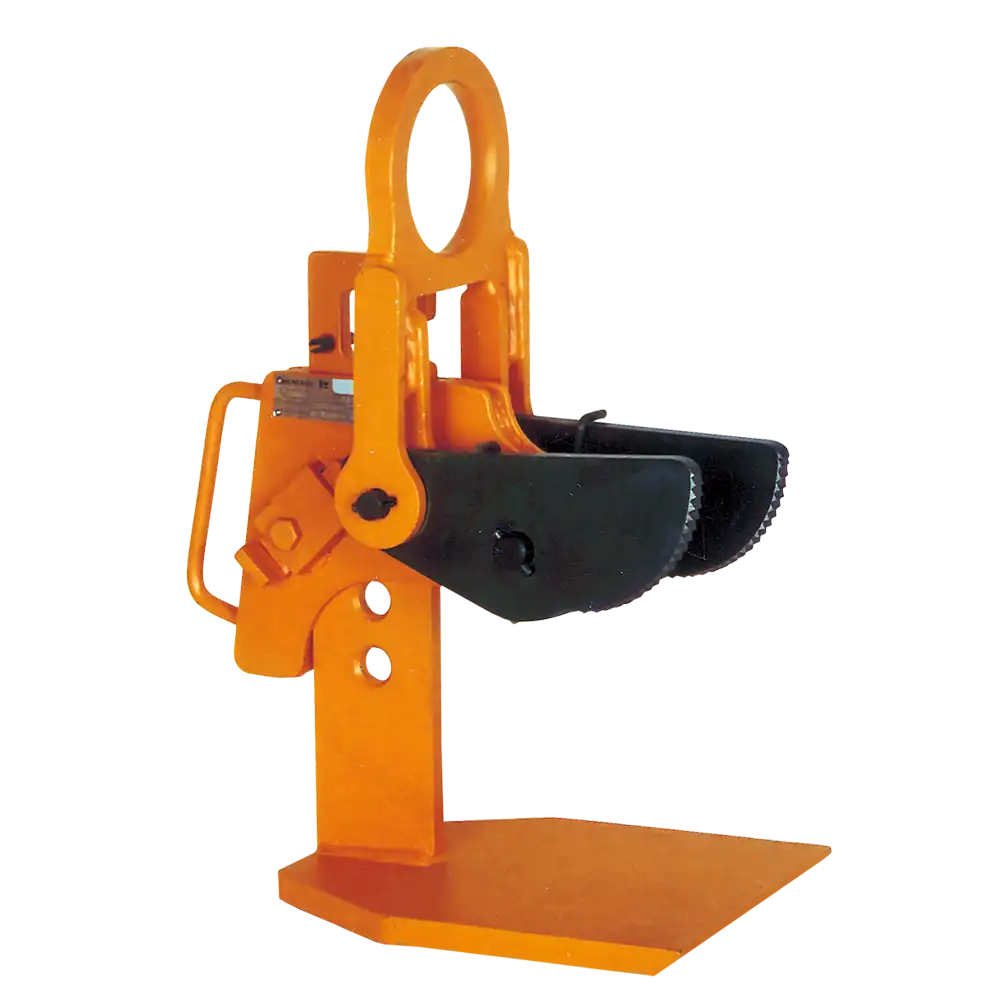

Horizontalklemme Typ WHS
- Tragfähigkeit 500 - 8000 kg
- für Bleche, Blechpakete, Stahlplatten
- für Mehrstranggehänge, Traversen
- besonders großer Greifbereich
Abmessungen [mm]:
Artikel | Tragfähigkeit kg | Greifweite (A) | B | C | D | E | F | G | H | J | X | Gewicht kg |
972110 | 500 | 0 - 152 | 275 | 360 | 16 | 89 | 76 | 13 | 213 | 114 | 16 | 20 |
972120 | 500 | 0 - 305 | 330 | 587 | 16 | 89 | 127 | 13 | 213 | 114 | 16 | 20 |
972130 | 500 | 0 - 406 | 330 | 691 | 16 | 89 | 127 | 13 | 213 | 114 | 16 | 20 |
972210 | 1500 | 0 - 152 | 275 | 364 | 19 | 89 | 76 | 19 | 213 | 118 | 19 | 25 |
972220 | 1500 | 0 - 305 | 330 | 591 | 19 | 89 | 127 | 19 | 213 | 118 | 19 | 25 |
972230 | 1500 | 0 - 406 | 330 | 694 | 19 | 89 | 127 | 19 | 213 | 118 | 19 | 25 |
972310 | 3000 | 0 - 152 | 275 | 387 | 41 | 89 | 76 | 25 | 213 | 118 | 19 | 25 |
972320 | 3000 | 0 - 305 | 330 | 592 | 41 | 89 | 127 | 25 | 213 | 118 | 19 | 25 |
972330 | 3000 | 0 - 406 | 330 | 706 | 41 | 89 | 127 | 25 | 213 | 118 | 19 | 25 |
972410 | 6000 | 0 - 152 | 330 | 459 | 57 | 89 | 127 | 25 | 213 | 118 | 25 | 25 |
972420 | 6000 | 0 - 305 | 330 | 630 | 57 | 89 | 127 | 25 | 213 | 118 | 25 | 25 |
972430 | 6000 | 0 - 406 | 330 | 732 | 57 | 89 | 127 | 25 | 213 | 118 | 25 | 25 |
972510 | 8000 | 0 - 152 | 330 | 470 | 75 | 89 | 152 | 25 | 213 | 133 | 26 | 24 |
972520 | 8000 | 0 - 305 | 330 | 632 | 75 | 89 | 152 | 25 | 213 | 133 | 26 | 24 |
972530 | 8000 | 0 - 406 | 330 | 733 | 75 | 89 | 152 | 25 | 213 | 133 | 26 | 24 |
