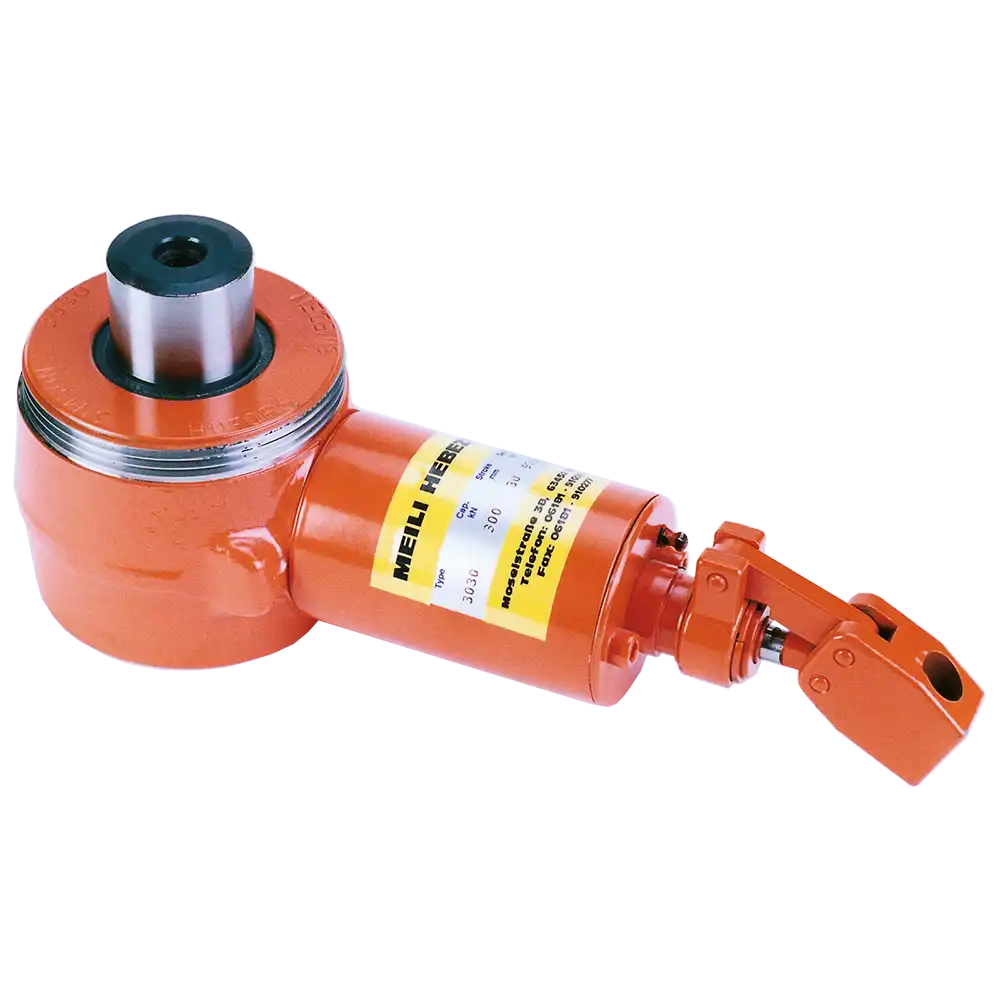

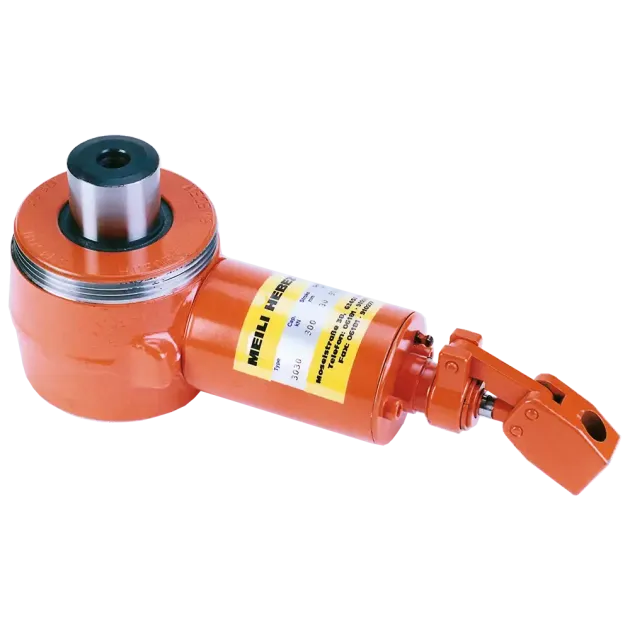

Kompkatheber Typ KH
- Tragfähigkeit 15 - 150 t
- Hub 30 - 50 mm
- arbeitet in allen Lagen
- klein, handlich und robust
- schwenkbarer Betätigungshebel

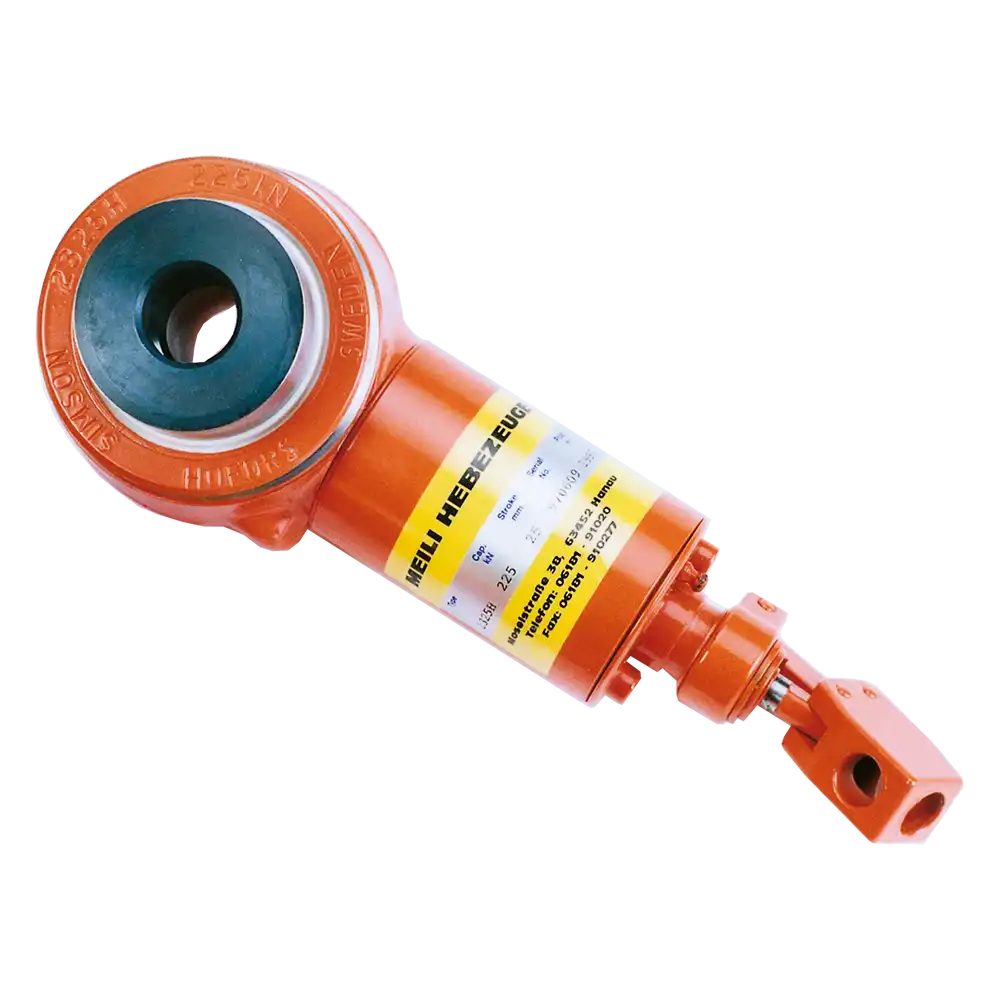

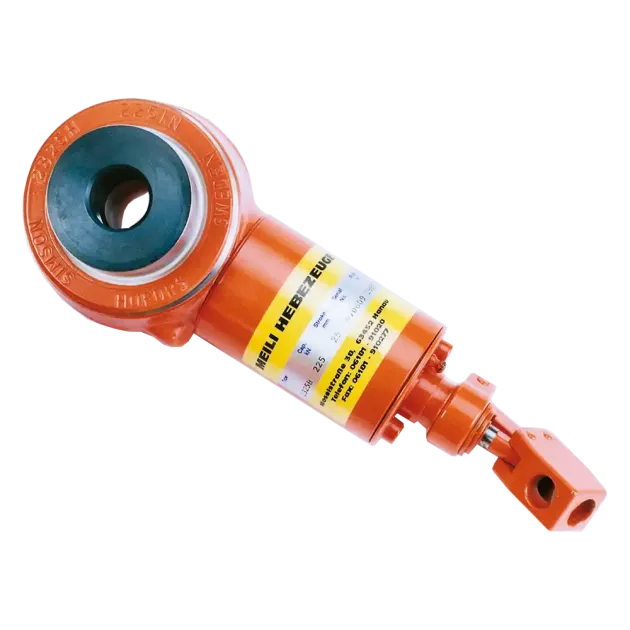

- einige Modelle mit Zentrumloch

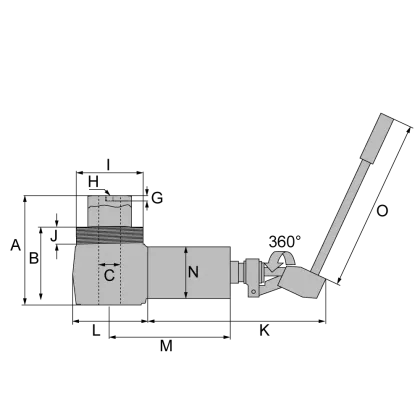

Abmessungen [mm]:
Artikel | Press- | Hub | Pump- stufen | A | B | C | D | G | H | I | J | K | L | M | N | O | Gewicht |
KH1531 | 15 | 30 | 1 | 104 | 74 | -- | 40 | 25 | M12 | -- | -- | 230 | 70 | 127 | 60 | 262 | 3,7 |
KH1532 | 15 | 30 | 2 | 104 | 74 | -- | 40 | 25 | M12 | -- | -- | 230 | 70 | 127 | 60 | 262 | 3,7 |
KH1571 | 15 | 75 | 1 | 205 | 130 | -- | 30 | 20 | M 8 | M 70x3 | 45 | 230 | 70 | 127 | 60 | 262 | 5,0 |
KH1572 | 15 | 75 | 2 | 205 | 130 | -- | 30 | 20 | M 8 | M 70x3 | 45 | 230 | 70 | 127 | 60 | 262 | 5,0 |
KH157B1 | 15 | 75 | 1 | 237 | 162 | -- | 30 | -- | M 8 | M 70x3 | 45 | 230 | 70 | 127 | 60 | 262 | 5,8 |
KH157B2 | 15 | 75 | 2 | 237 | 162 | -- | 30 | -- | M 8 | M 70x3 | 45 | 230 | 70 | 127 | 60 | 262 | 5,8 |
KH2172H | 22 | 75 | 2 | 205 | 130 | 30,5 | 60 | -- | -- | M 90x3 | 20 | 276 | 105 | 175 | 98 | 262 | 10,4 |
KH217HG2 | 22 | 75 | 2 | 247 | 172 | 26,5 | 60 | 50 | 0,0 | M 90x3 | 20 | 276 | 105 | 175 | 98 | 262 | 10,5 |
KH232H1 | 23 | 25 | 1 | 104 | 79 | 24,5 | 60 | -- | -- | M 90x3 | 14 | 244 | 98 | 141 | 60 | 262 | 5,5 |
KH232H2 | 23 | 25 | 2 | 104 | 79 | 24,5 | 60 | -- | -- | M 90x3 | 14 | 244 | 98 | 141 | 60 | 262 | 5,5 |
KH232HG1 | 23 | 25 | 1 | 134 | 109 | 21,0 | 60 | 35 | M24 | M 90x3 | 14 | 244 | 98 | 141 | 60 | 262 | 5,8 |
KH232HG2 | 23 | 25 | 2 | 134 | 109 | 21,0 | 60 | 35 | M24 | M 90x3 | 14 | 244 | 98 | 141 | 60 | 262 | 5,8 |
KH3031 | 30 | 30 | 1 | 109 | 79 | -- | 40 | 25 | M12 | M 90x3 | 14 | 244 | 98 | 141 | 60 | 262 | 5,5 |
KH3032 | 30 | 30 | 2 | 109 | 79 | -- | 40 | 25 | M12 | M 90x3 | 14 | 244 | 98 | 141 | 60 | 262 | 5,5 |
KH3472 | 34 | 75 | 2 | 205 | 130 | -- | 60 | 35 | M16 | M 90x3 | 20 | 276 | 105 | 175 | 98 | 262 | 11,1 |
KH4352H | 43 | 55 | 2 | 185 | 130 | 40,5 | 80 | -- | -- | M120x3 | 20 | 288 | 135 | 185 | 98 | 262 | 13,6 |
KH4352HG | 43 | 55 | 2 | 232 | 177 | 35,0 | 80 | 60 | M39 | M120x3 | 20 | 288 | 135 | 185 | 98 | 262 | 13,8 |
KH6252 | 62 | 55 | 2 | 185 | 130 | -- | 80 | 35 | M16 | M120x3 | 20 | 288 | 135 | 185 | 98 | 262 | 15,2 |
KH6502H | 115 | 50 | 2 | 184 | 134 | 56,0 | 100 | -- | -- | M200x4 | 25 | 305 | 210 | 202 | 98 | 262 | 37,0 |
KH6502HG | 115 | 50 | 2 | 184 | 209 | 50,0 | 100 | -- | -- | M200x4 | 25 | 305 | 210 | 202 | 98 | 262 | 37,3 |
KH7502 | 150 | 50 | 2 | 184 | 134 | -- | 100 | 35 | M16 | M200x4 | 25 | 305 | 210 | 202 | 98 | 262 | 41,0 |
