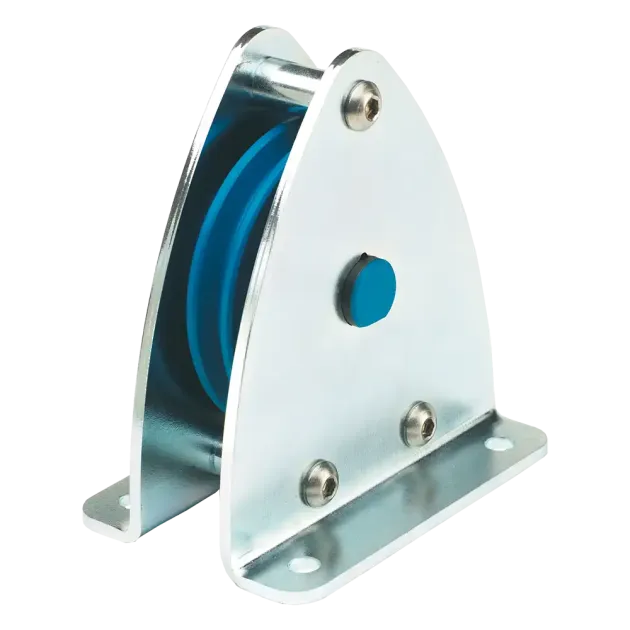

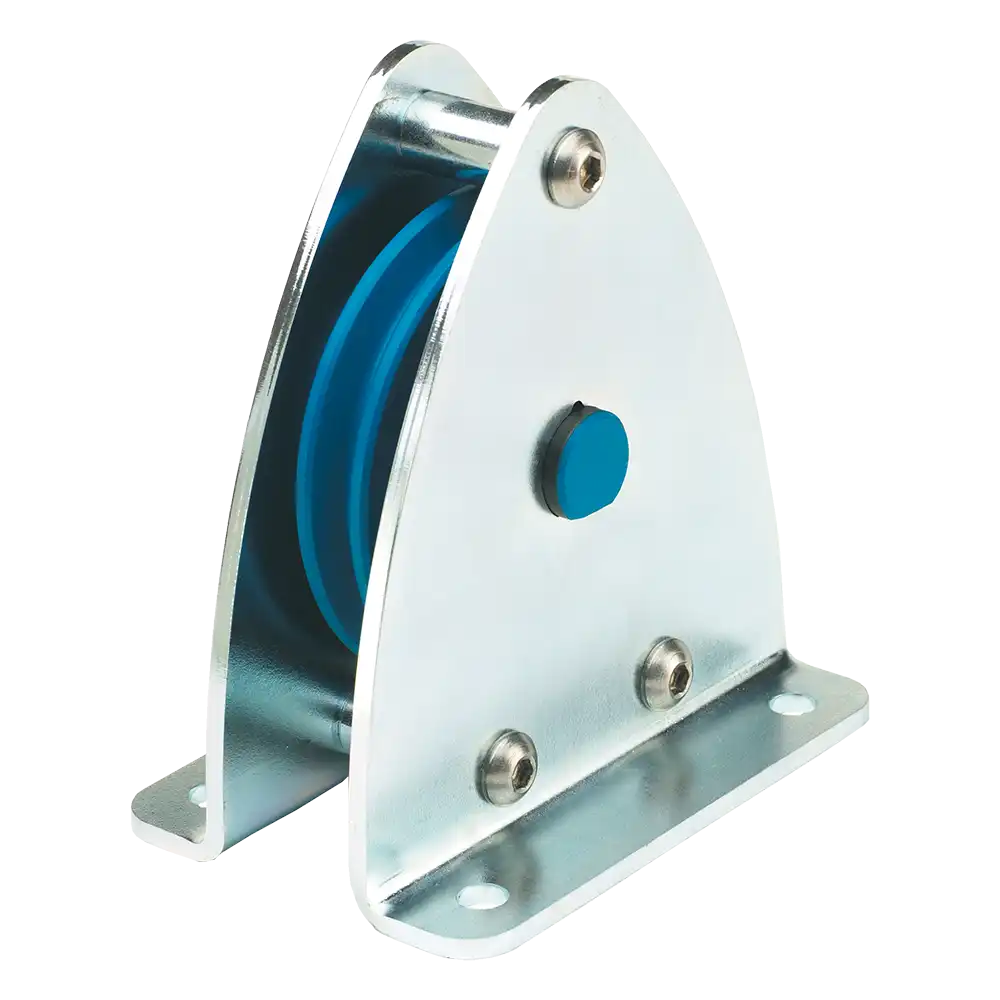

Rollenbock Typ SRWZ60
- Seil 3 - 20 mm
- Seilzug 500 - 8000 kg
- wartungsfreies Kugellager
- Rillenprofil aus dem Vollen gedreht
Abmessungen [mm]:
Artikel | Seilzugkraft 90° kg | Seilzugkraft 180° kg | für Seil Ø mm | Triebwerk- gruppe | Rolle A | B | C | D | E | F | G | H | J | K |
SRWZ603 | 700 | 500 | 3 - 4 | 2m | 90 | 80 | 90 | 120 | 4 | 65 | 134 | 62 | 85 | 9 |
SRWZ6031 | 700 | 500 | 5 - 6 | 1Dm | 90 | 78 | 90 | 120 | 6 | 65 | 134 | 62 | 85 | 9 |
SRWZ604 | 1100 | 800 | 5 | 4m | 145 | 125 | 160 | 200 | 6 | 110 | 224 | 88 | 125 | 11,5 |
SRWZ605 | 1100 | 800 | 6 | 2m | 145 | 125 | 160 | 200 | 6 | 110 | 224 | 88 | 125 | 11,5 |
SRWZ606 | 1100 | 800 | 7 | 1Am | 145 | 126 | 160 | 200 | 6 | 110 | 224 | 88 | 125 | 11,5 |
SRWZ607 | 2300 | 1630 | 8 | 2m | 185 | 160 | 195 | 245 | 8 | 135 | 273 | 106 | 138 | 13,5 |
SRWZ608 | 2300 | 1630 | 9 | 1Am | 185 | 162 | 195 | 245 | 8 | 135 | 273 | 106 | 138 | 13,5 |
SRWZ611 | 2500 | 1800 | 9 - 12 | 2m | 270 | 246 | 290 | 360 | 10 | 202 | 407 | 138 | 191 | 18 |
SRWZ612 | 4500 | 3200 | 14 | 2m | 325 | 297 | 350 | 440 | 12 | 242 | 490 | 180 | 260 | 26 |
SRWZ613 | 5000 | 3800 | 13 - 16 | 3m | 400 | 368 | 430 | 530 | 15 | 310 | 612 | 212 | 302 | 26 |
SRWZ614 | 5000 | 3800 | 18 | 2m | 400 | 364 | 430 | 530 | 15 | 310 | 612 | 212 | 302 | 26 |
SRWZ615 | 8000 | 6000 | 20 | 3m | 490 | 450 | 580 | 650 | 16 | 340 | 694 | 220 | 313 | 34 |
