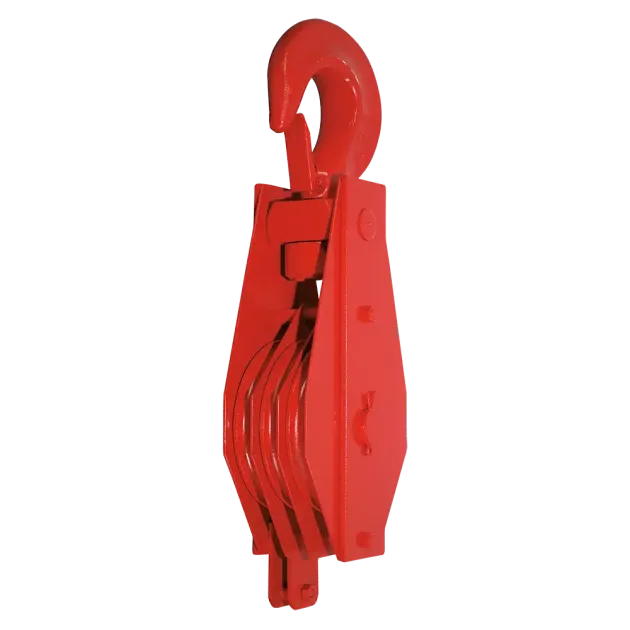

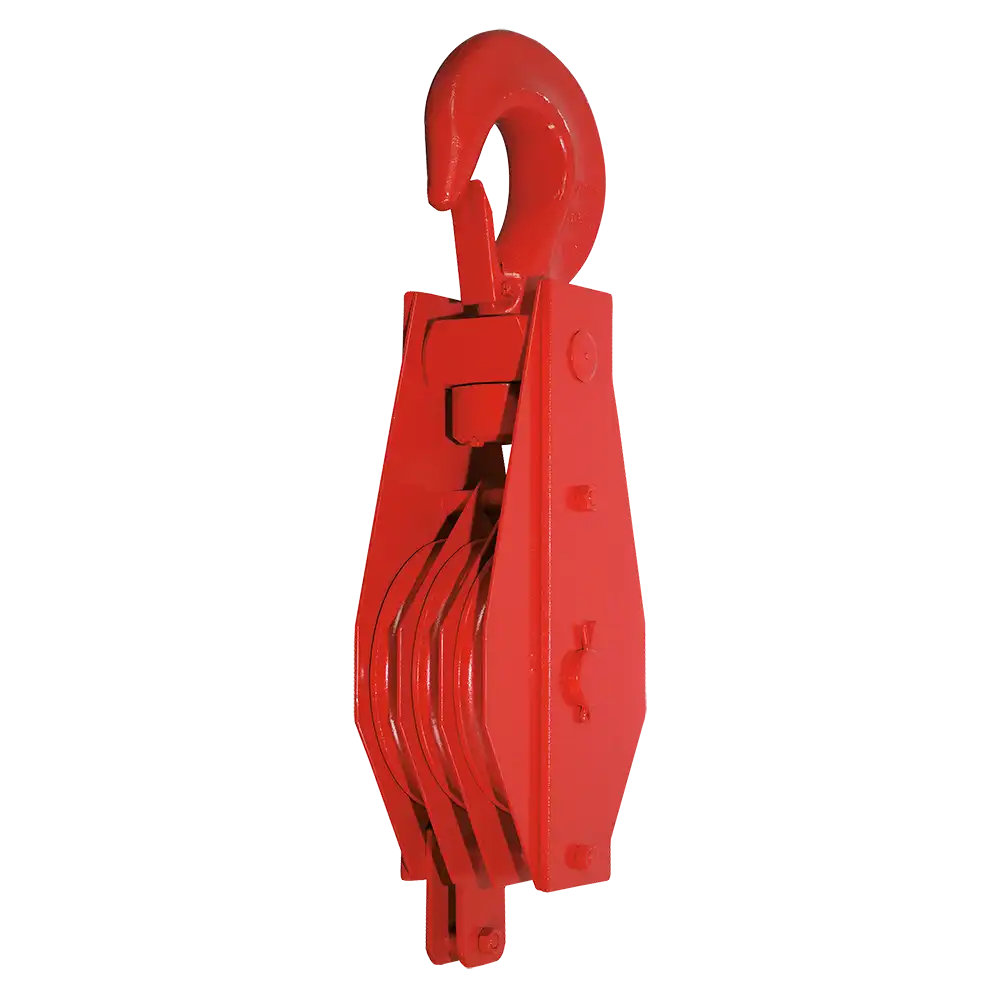

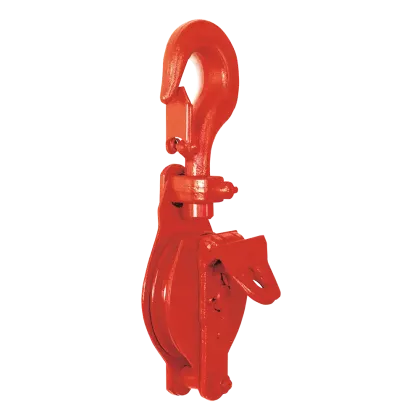

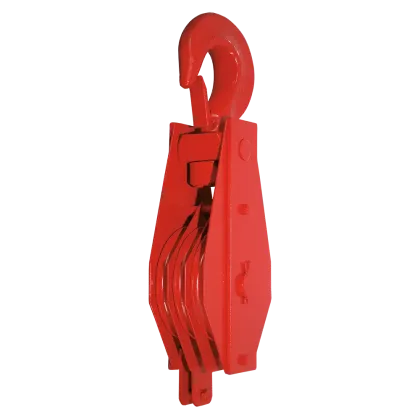

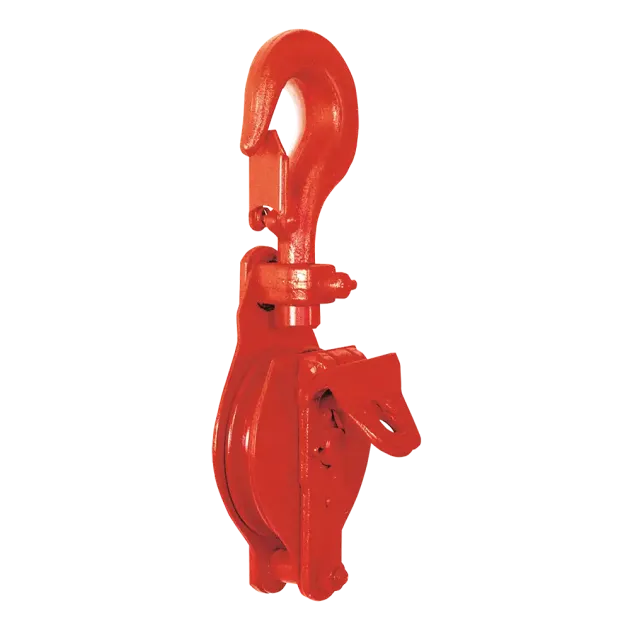

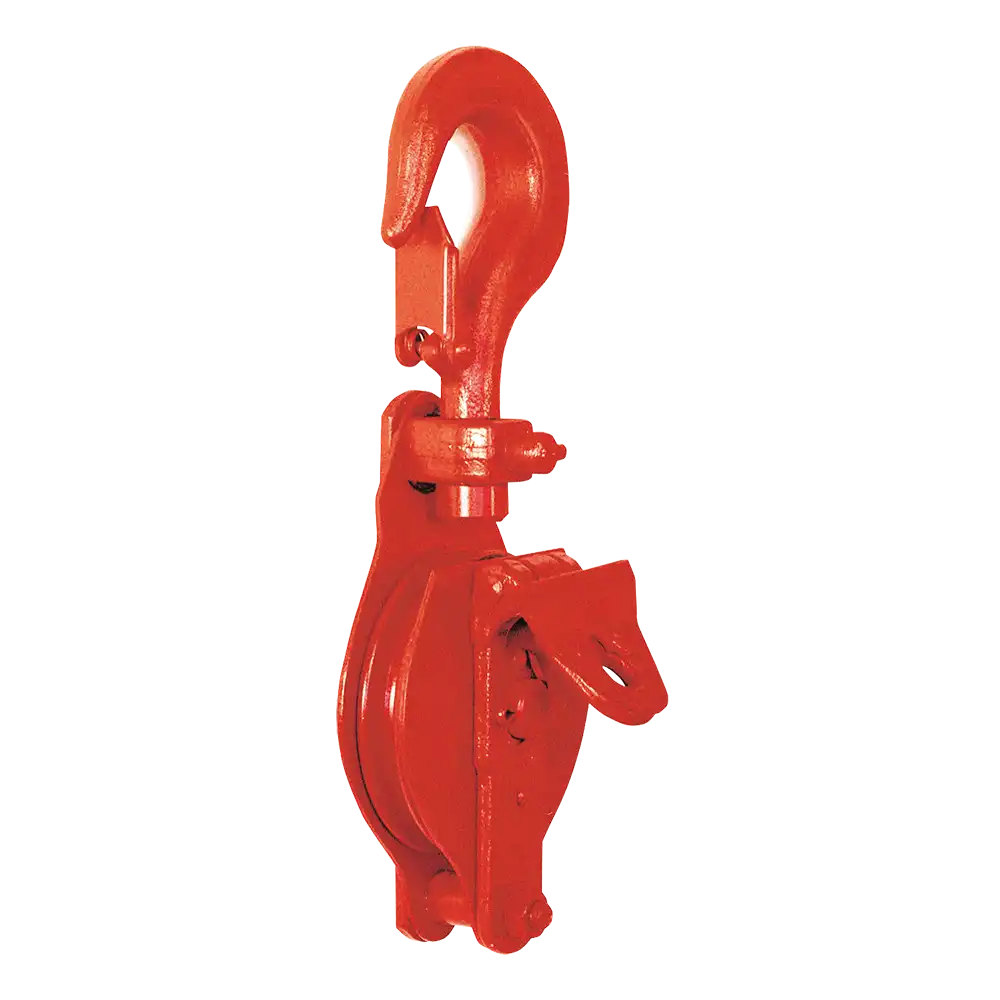

Seilflasche Typ SF
- Tragfähigkeit 500 - 40000 kg
- Seil 7 - 30 mm
- drehbarer Haken
- Rolle aus Polyamid oder Stahl
- Zentralschmierung
Abmessungen:
Artikel | Tragfähigkeit kg | für Seil Ø mm | Rolle Ø mm | Länge mm |
SF1100KG | 500 | 7 | 100 | 350 |
SF1100KS | 500 | 7 | 100 | 350 |
SF11000G | 500 | 7 | 100 | 385 |
SF11000S | 500 | 7 | 100 | 385 |
SF1125KG | 1000 | 9 | 125 | 390 |
SF1125KS | 1000 | 9 | 125 | 390 |
SF11250G | 1000 | 9 | 125 | 430 |
SF11250S | 1000 | 9 | 125 | 430 |
SF21000G | 1000 | 7 | 100 | 410 |
SF21000S | 1000 | 7 | 100 | 410 |
SF21250G | 1600 | 9 | 125 | 440 |
SF21250S | 1600 | 9 | 125 | 440 |
SF1150KG | 2000 | 11 | 150 | 435 |
SF1150KS | 2000 | 11 | 150 | 435 |
SF11500G | 2000 | 11 | 150 | 500 |
SF11500S | 2000 | 11 | 150 | 500 |
SF1175KS | 3000 | 12 | 175 | 580 |
SF1200KS | 3000 | 15 | 200 | 580 |
SF11750S | 3000 | 12 | 175 | 640 |
SF12000S | 3000 | 15 | 200 | 640 |
SF21500G | 3000 | 11 | 150 | 525 |
SF21500S | 3000 | 11 | 150 | 525 |
SF1225KS | 5000 | 16 | 225 | 700 |
SF1250KS | 5000 | 18 | 250 | 700 |
SF12250S | 5000 | 16 | 225 | 740 |
SF12500S | 5000 | 18 | 250 | 740 |
SF21750S | 5000 | 12 | 175 | 680 |
SF22000S | 5000 | 15 | 200 | 680 |
SF22250S | 8000 | 16 | 225 | 785 |
SF22500S | 8000 | 18 | 250 | 785 |
