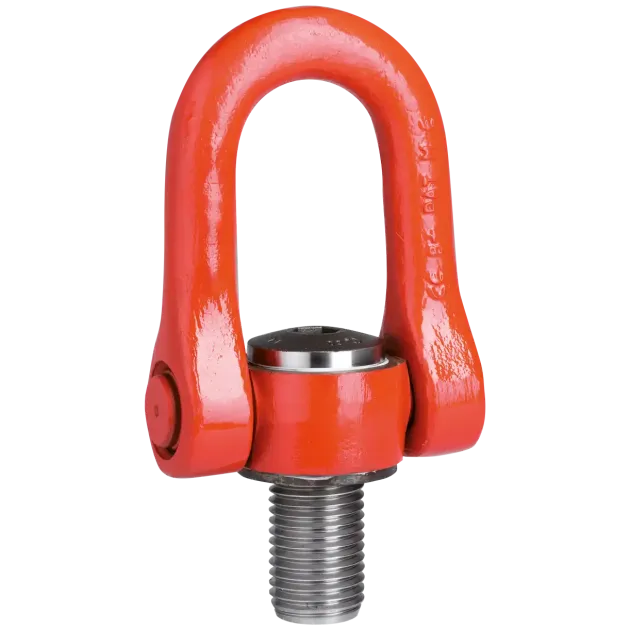

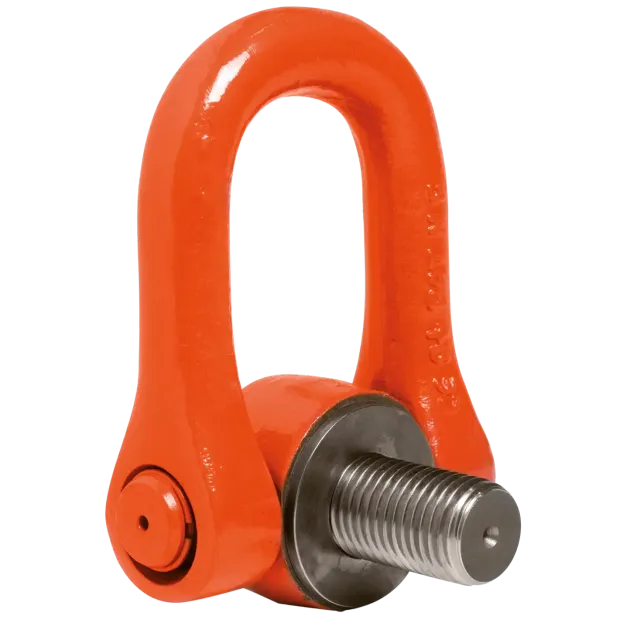

Transportbügel Typ RSJ1
- zum Anschlagen von schweren Lasten
- Gewinde M24x3,0 - M100x6,0
- Tragfähigkeit 9000 - 32100 kg
- 360 Grad drehbar
- 180 Grad schwenkbar
- allseitig belastbar
- mit unverlierbarer Befestigungsschraube
- im fest verschraubten Zustand in Zugrichtung einstellbar
- Aufhängebügel pulverbeschichtet
- Korpus und Schraube vollverzinkt
- Temperaturbereich zwischen -20°c und +200°c
- Tragfähigkeitskennzeichnung

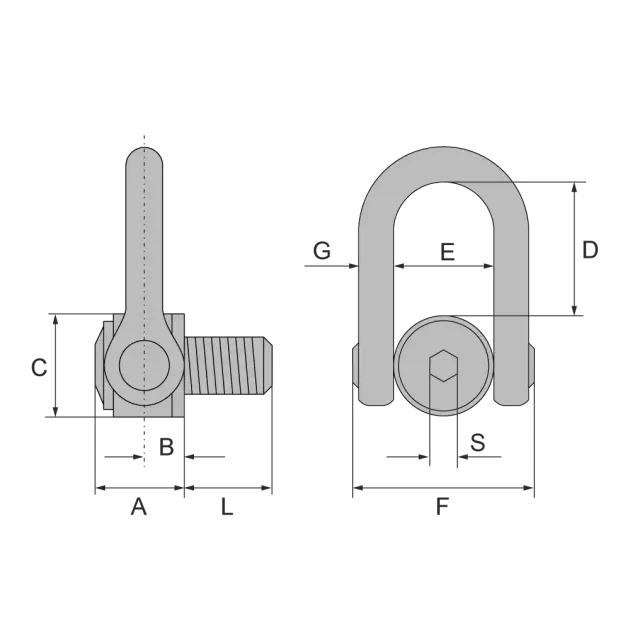

Abmessungen [mm]:
Artikel | Gewinde M | L | S | A | B | C | D | E | F | G | Gewicht kg |
RSJ1024 | 24x3,0 | 36 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,4 |
RSJ1030 | 30x3,5 | 45 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,5 |
RSJ1033 | 33x3,5 | 50 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,5 |
RSJ10361 | 36x3,0 | 54 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,5 |
RSJ1036 | 36x4,0 | 54 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,5 |
RSJ1039 | 39x4,0 | 58 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,7 |
RSJ10421 | 42x3,0 | 63 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,8 |
RSJ1042 | 42x4,5 | 63 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,8 |
RSJ1045 | 45x4,5 | 63 | 19 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 5,9 |
RSJ10481 | 48x3,0 | 68 | 19 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 11 |
RSJ10482 | 48x4,0 | 68 | 19 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 11 |
RSJ1048 | 48x5,0 | 68 | 19 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 11 |
RSJ1052 | 52x5,0 | 68 | 19 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 11,2 |
RSJ10561 | 56x4,0 | 78 | 19 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 11,4 |
RSJ1056 | 56x5,5 | 78 | 19 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 11,3 |
RSJ10723 | 72x4,0 | 90 | 19 | 79 | 38 | 95 | 125 | 91 | 182 | 45 | 14 |
RSJ10722 | 72x6,0 | 90 | 19 | 79 | 38 | 95 | 125 | 91 | 182 | 45 | 14 |
RSJ10642 | 64x4,0 | 90 | 19 | 79 | 38 | 95 | 125 | 91 | 182 | 45 | 12,2 |
RSJ1064 | 64x6,0 | 90 | 19 | 79 | 38 | 95 | 125 | 91 | 182 | 45 | 12,2 |
RSJ10801 | 80x6,0 | 90 | 19 | 79 | 38 | 100 | 125 | 91 | 182 | 45 | 15 |
RSJ10901 | 90x6,0 | 90 | 19 | 79 | 38 | 100 | 125 | 91 | 182 | 45 | 15,5 |
RSJ11001 | 100x6,0 | 90 | 19 | 79 | 38 | 110 | 125 | 91 | 182 | 45 | 16,5 |
RSJ10641 | 64x6,0 | 100 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 42 |
RSJ10721 | 72x4,0 | 110 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 43 |
RSJ1072 | 72x6,0 | 110 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 43 |
RSJ1080 | 80x6,0 | 120 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 44,5 |
RSJ1090 | 90x6,0 | 135 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 46,5 |
RSJ1100 | 100x6,0 | 150 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 49 |
mit UNC Gewinde | |||||||||||
RSJ2001 | 1 1/4-7 | 45 | 19 | 61 | 31 | 70 | 104 | 73 | 145 | 29 | 5,4 |
RSJ2002 | 1 3/8-6 | 54 | 19 | 61 | 31 | 70 | 104 | 73 | 145 | 29 | 5,4 |
RSJ2003 | 1 1/2-6 | 61 | 19 | 61 | 31 | 70 | 104 | 73 | 145 | 29 | 5,4 |
RSJ2004 | 2-4 1/2 | 76 | 19 | 79 | 38 | 90 | 125 | 91 | 184 | 33 | 11,1 |
RSJ2006 | 2 1/2-4 | 90 | 19 | 79 | 38 | 95 | 125 | 91 | 182 | 45 | 12,2 |
RSJ2007 | 2 3/4-4 | 105 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 69 | 42,5 |
RSJ2008 | 03. Apr | 115 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 59 | 43 |
RSJ2009 | 3 1/4-4 | 125 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 59 | 44,5 |
RSJ2010 | 3 1/2-4 | 135 | 36 | 127 | 64 | 140 | 195 | 143 | 278 | 59 | 46 |
Tragfähigkeiten [kg]:
Artikel | 1-Strang | 2-Strang | 3-/4-Strang | |||||
| 0°
| 90°
| 90°
| 0°
| >0–45°
| >45–60°
| >0–45°
| >45–60°
|
RSJ1024 | 9000 | 5500 | 11000 | 18000 | 7700 | 5500 | 11500 | 5500 |
RSJ1030 | 14000 | 8500 | 17000 | 28000 | 11900 | 8500 | 17850 | 8500 |
RSJ1033 | 14500 | 10500 | 21000 | 29000 | 14700 | 10500 | 22050 | 10500 |
RSJ10361 | 15000 | 12000 | 24000 | 30000 | 16800 | 12000 | 25200 | 12000 |
RSJ1036 | 15000 | 12000 | 24000 | 30000 | 16800 | 12000 | 25200 | 12000 |
RSJ1039 | 17000 | 14000 | 28000 | 34000 | 19600 | 14000 | 29400 | 14000 |
RSJ10421 | 15500 | 15000 | 30000 | 31000 | 21000 | 15000 | 31500 | 15000 |
RSJ1042 | 15500 | 15000 | 30000 | 31000 | 21000 | 15000 | 31500 | 15000 |
RSJ1045 | 15000 | 16000 | 32000 | 30000 | 22400 | 16000 | 33600 | 16000 |
RSJ10481 | 22000 | 20000 | 40000 | 44000 | 28000 | 20000 | 42000 | 20000 |
RSJ10482 | 22000 | 20000 | 40000 | 44000 | 28000 | 20000 | 42000 | 20000 |
RSJ1048 | 22000 | 20000 | 40000 | 44000 | 28000 | 20000 | 42000 | 20000 |
RSJ1052 | 23000 | 20000 | 40000 | 46000 | 28000 | 20000 | 42000 | 20000 |
RSJ10561 | 25000 | 25000 | 50000 | 50000 | 35000 | 25000 | 52500 | 25000 |
RSJ1056 | 25000 | 25000 | 50000 | 50000 | 35000 | 25000 | 52500 | 25000 |
RSJ10723 | 25000 | 25000 | 50000 | 50000 | 35000 | 25000 | 52500 | 25000 |
RSJ10722 | 25000 | 25000 | 50000 | 50000 | 35000 | 25000 | 52500 | 25000 |
RSJ10642 | 32100 | 32100 | 64200 | 64200 | 44940 | 32100 | 67410 | 32100 |
RSJ1064 | 32100 | 32100 | 64200 | 64200 | 44940 | 32100 | 67410 | 32100 |
RSJ10801 | 32100 | 32100 | 64200 | 64200 | 44940 | 32100 | 67410 | 32100 |
RSJ10901 | 32100 | 32100 | 64200 | 64200 | 44940 | 32100 | 67410 | 32100 |
RSJ11001 | 32100 | 32100 | 64200 | 64200 | 44940 | 32100 | 67410 | 32100 |
RSJ10641 | 33000 | 33000 | 66000 | 66000 | 46200 | 33000 | 69300 | 33000 |
RSJ10721 | 35000 | 35000 | 70000 | 70000 | 49000 | 35000 | 73500 | 35000 |
RSJ1072 | 35000 | 35000 | 70000 | 70000 | 49000 | 35000 | 73500 | 35000 |
RSJ1080 | 40000 | 40000 | 80000 | 80000 | 56000 | 40000 | 84000 | 40000 |
RSJ1090 | 45000 | 45000 | 90000 | 90000 | 63000 | 45000 | 94500 | 45000 |
RSJ1100 | 60000 | 60000 | 120000 | 120000 | 84000 | 60000 | 126000 | 60000 |
mit UNC Gewinde | ||||||||
RSJ2001 | 13600 | 8600 | 17200 | 27200 | 12000 | 8600 | 18000 | 8600 |
RSJ2002 | 14500 | 9900 | 19900 | 29000 | 13900 | 9900 | 20900 | 9900 |
RSJ2003 | 14900 | 12200 | 24400 | 29900 | 17100 | 12200 | 25700 | 12200 |
RSJ2004 | 22600 | 22600 | 45300 | 45300 | 31700 | 22600 | 47600 | 22600 |
RSJ2006 | 24900 | 24900 | 49800 | 49800 | 34900 | 24900 | 52300 | 24900 |
RSJ2007 | 34000 | 34000 | 68000 | 68000 | 47600 | 34000 | 71400 | 34000 |
RSJ2008 | 36200 | 36200 | 72500 | 72500 | 5800 | 36200 | 76200 | 36200 |
RSJ2009 | 40800 | 40800 | 81600 | 81600 | 57100 | 40800 | 85700 | 40800 |
RSJ2010 | 43000 | 43000 | 86100 | 86100 | 60300 | 43000 | 90400 | 43000 |
Werden mehrstrangige Anschlagmittel mit unterschiedlichen Neigungs- und Spreizwinkeln der einzelnen Stränge eingesetzt und/oder ist der Schwerpunkt der Last ungleichmäßig verteilt, müssen die Anschlagpunkte so ausgewählt werden, dass ein einzelner Anschlagpunkt in der Variante 1-Strang 90° die gesamte Last tragen kann.
