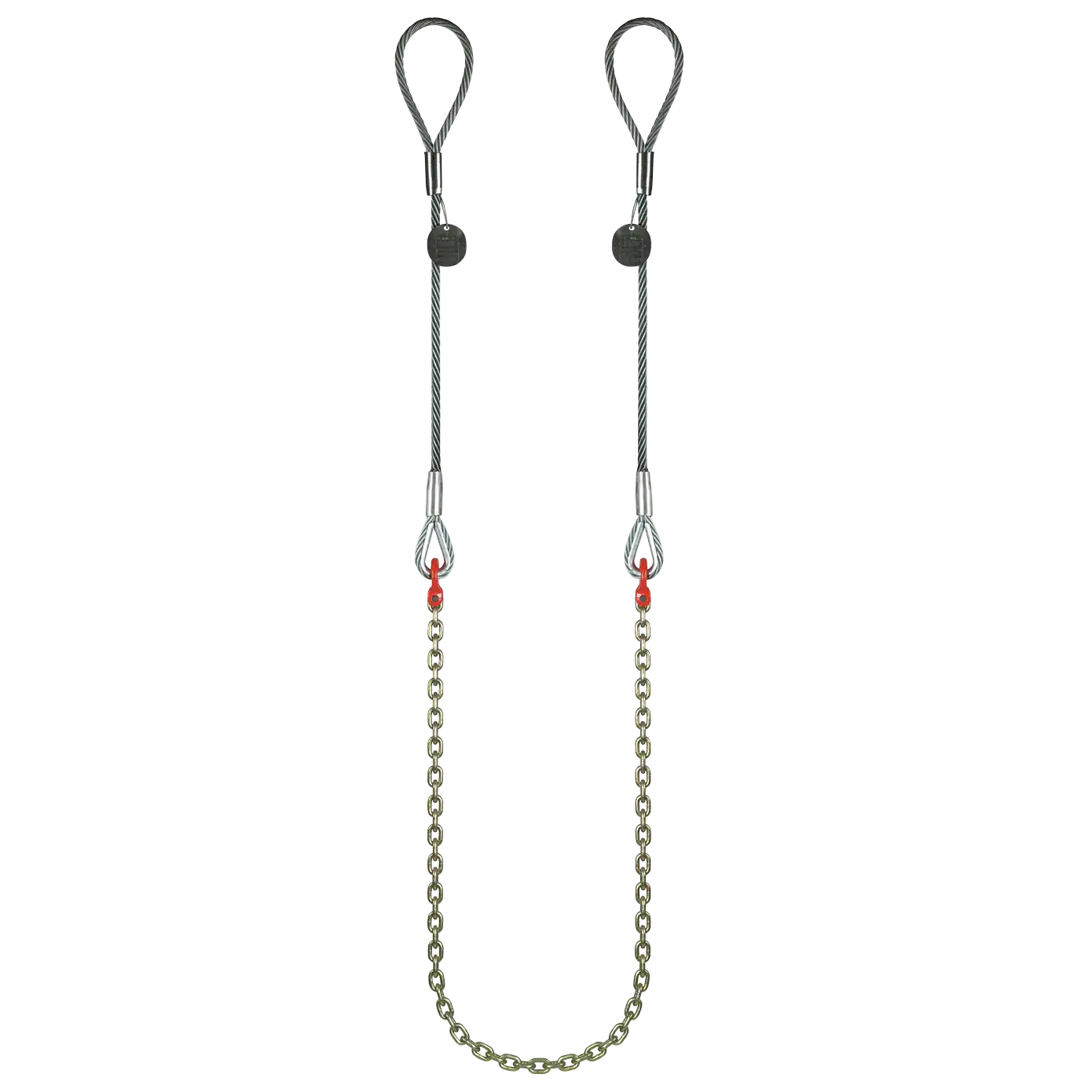

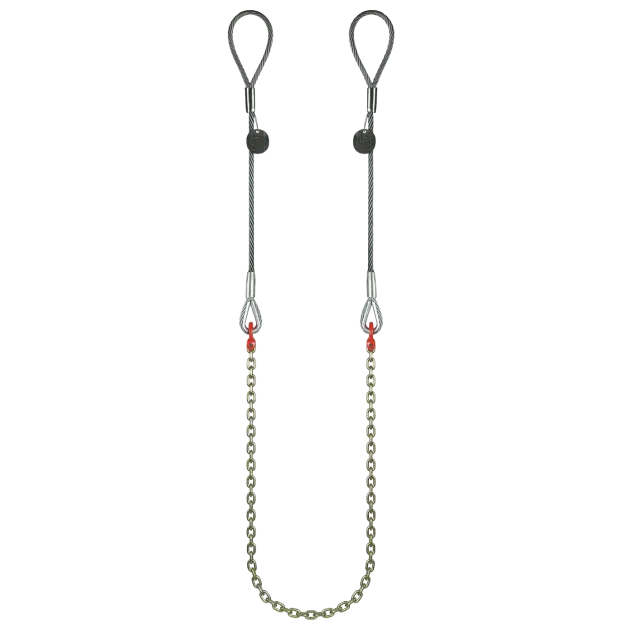

Kombigehänge Seil-Kette-Seil
- 2 Drahtseile verzinkt
- Lastkette GK8
- Kauschen mit Verbindungsgliedern GK8
Abmessungen:
Artikel | Kette mm | Seil mm | Nutzlänge ges. mm | Länge Kette mm | Länge Seil mm |
S2K0603 | 6 | 10 | 3000 | 1000 | 1000 |
S2K0604 | 6 | 10 | 4000 | 1000 | 1500 |
S2K0606 | 6 | 10 | 6000 | 2000 | 2000 |
S2K0703 | 7 | 12 | 3000 | 1000 | 1000 |
S2K0704 | 7 | 12 | 4000 | 1000 | 1500 |
S2K0706 | 7 | 12 | 6000 | 2000 | 2000 |
S2K0803 | 8 | 14 | 3000 | 1000 | 1000 |
S2K0804 | 8 | 14 | 4000 | 1000 | 1500 |
S2K0806 | 8 | 14 | 6000 | 2000 | 2000 |
S2K1003 | 10 | 18 | 3000 | 1000 | 1000 |
S2K1004 | 10 | 18 | 4000 | 1000 | 1500 |
S2K1006 | 10 | 18 | 6000 | 2000 | 2000 |
S2K1305 | 13 | 22 | 5000 | 2000 | 1500 |
S2K1306 | 13 | 22 | 6000 | 2000 | 2000 |
S2K1307 | 13 | 22 | 7000 | 2000 | 2500 |
S2K1606 | 16 | 28 | 6000 | 2000 | 2000 |
S2K1607 | 16 | 28 | 7000 | 2000 | 2500 |
S2K1608 | 16 | 28 | 8000 | 2000 | 3000 |
Tragfähigkeiten [kg]:
Artikel | geschnürt | 2-Strang | 3-/4-Strang | ||
| 0°
| >0–45
| >45–60
| >0–45°
| >45–60°
|
S2K0603 | 800 | 1400 | 1000 | - | - |
S2K0604 | 800 | 1400 | 1000 | - | - |
S2K0606 | 800 | 1400 | 1000 | - | - |
S2K0703 | 1200 | 2100 | 1500 | - | - |
S2K0704 | 1200 | 2100 | 1500 | - | - |
S2K0706 | 1200 | 2100 | 1500 | - | - |
S2K0803 | 1600 | 2800 | 2000 | - | - |
S2K0804 | 1600 | 2800 | 2000 | - | - |
S2K0806 | 1600 | 2800 | 2000 | - | - |
S2K1003 | 2520 | 4400 | 3150 | - | - |
S2K1004 | 2520 | 4400 | 3150 | - | - |
S2K1006 | 2520 | 4400 | 3150 | - | - |
S2K1305 | 4000 | 7000 | 5000 | - | - |
S2K1306 | 4000 | 7000 | 5000 | - | - |
S2K1307 | 4000 | 7000 | 5000 | - | - |
S2K1606 | 6400 | 11200 | 8000 | - | - |
S2K1607 | 6400 | 11200 | 8000 | - | - |
S2K1608 | 6400 | 11200 | 8000 | - | - |
